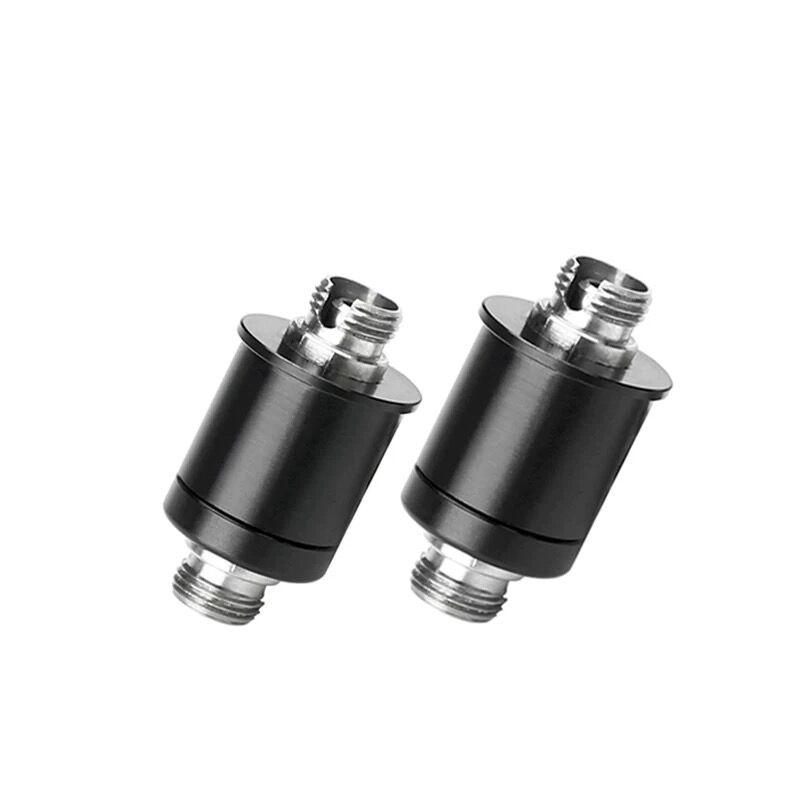

| Optogenetics Rotary Joint | ||||||||||
|
Optogenetics Rotary Joint is special designed for optogenetics application, rotary joint allows patch cords to rotate freely when connected to moving samples, which can reduce the risk of fiber damage, the configuration is 1x1, it features good air tightness and high reliability. |
||||||||||
|
||||||||||
| Application: | Features: | |||||||||
|
optogenetics System Fiber Optic Sensor Testing System Lab & Research |
Low Insertion Loss Good Air Tightness High Rotating Speed High Reliability |
|||||||||
| Optical Specification: | ||||||||||
| Parameter | Symbol | Value | Unit | |||||||
| Center Wavelength | λ | 400-2000 | nm | |||||||
| Typ. Insertion Loss | IL | 0.8 | dB | |||||||
| Max. Insertion Loss | IL | 1.0 | dB | |||||||
| Max. Rotating Speed | 200 | rpm | ||||||||
| Min. Rotating Times | 3x109 | Times | ||||||||
| Match Fiber Type | 105/125 0.22NA, 200/230 0.37NA, 400/430 0.37NA MM fiber | - | ||||||||
| Tensil Load | 5 | N | ||||||||
| Max. Optical Power | P | 5 | W | |||||||
| Operating Temperature | T | -10~60 | ℃ | |||||||
| Storage Temperature | T | -40~85 | ℃ | |||||||
| Notice: Above specifications are tested at center wavelength in room temperature @23℃. | ||||||||||
|
||||||||||
| Drawing: | ||||||||||
| Ordering Information (Part Number): | ||||||||||
| OGRJ-WWW-CC-CC | ||||||||||
| WWW | CC | CC | ||||||||
| Wavelength | Configuration | Connector | ||||||||
| 593 - 593nm | 11 - 1x1 | FC - FC/PC | ||||||||
| 650 - 650nm | SS - Specify | |||||||||
| 850 - 850nm | ||||||||||
| SSS - Specify | ||||||||||
Optogenetics Rotary Joint
Wavelength: 400-2200nm
Configuration: 1x1
Connector: FC/PC
