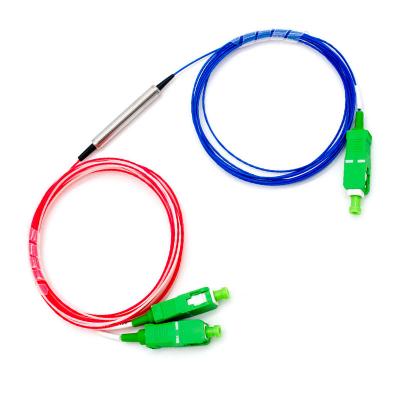

| 1490&1550/1310nm 1x2 Filter WDM | ||||||||||||||
|
1490&1550/1310nm Wavelength Division Mulitplexer is a fiber component built with thin-film filter technology, it can be used to sepreate or combine 1490, 1550nm and 1310nm wavelength signal, it's widely used in CATV Systems and Fiber Optic Testing Systems, the high power type is available upon request. |
||||||||||||||
|
||||||||||||||
| Application: | Features: | |||||||||||||
|
CATV FTTx Testing Instrument Lab And Research |
Epoxy Free High Isolation Low Insertion Loss Optical Path Reversibility |
|||||||||||||
| Specification: | ||||||||||||||
| Parameter | Symbol | Value | Unit | |||||||||||
| Type | P1490&1550 R1310 | nm | ||||||||||||
| Pass Band | λ | 1490, 1550 (1460-1620) | nm | |||||||||||
| Reflect Band | λ | 1310 (1260-1360) | nm | |||||||||||
| Max. Insertion Loss @Pass Channel | IL | 0.6 | dB | |||||||||||
| Max. Insertion Loss @Reflect Channel | IL | 0.4 | dB | |||||||||||
| Min. Isolation @Pass Channel | Iso | 30 | dB | |||||||||||
| Min. Isolation @Reflect Channel | Iso | 15 | dB | |||||||||||
| Max. Insertion Loss Temperature Sensitivity | 0.5 | dB | ||||||||||||
| Max. Polarization Dependent Loss | PDL | 0.1 | dB | |||||||||||
| Max. Polarization Mode Dispersion | PMD | 0.1 | ps | |||||||||||
| Min. Directivity | 50 | dB | ||||||||||||
| Min. Return Loss | RL | 50 | dB | |||||||||||
| Max. Optical Power (CW) | P | 500 | mW | |||||||||||
| Max. Tensil Load | 5 | N | ||||||||||||
| Fiber Type | SMF-28e fiber | - | ||||||||||||
| Operating Temperature | T | -5~75 | ℃ | |||||||||||
| Storage Temperature | T | -40~85 | ℃ | |||||||||||
| Package Dimension | Φ5.5×L35 | mm | ||||||||||||
| Notice: Above specifications are tested at center wavelength without connector in room temperature @23℃. | ||||||||||||||
| For devices with connectors, IL will be 0.3dB higher, RL will be 5dB lower. | ||||||||||||||
| Drawing: |
|
|||||||||||||
| Ordering Information (Part Number): | ||||||||||||||
| FWDM-WWWW/WW-D-J-LL-CC | ||||||||||||||
| WWWW/WW | D | J | LL | CC | ||||||||||
| Wavelength | Package Dimension | Fiber Jacket | Fiber Length | Connector | ||||||||||
| 1415/13 - 1490&1550nm Pass, | 1 - Φ5.5×L35mm | B - 250um Bare Fiber | 05 - 0.5m | NE - None | ||||||||||
| 1310nm Reflect | 2 - 90x20x10mm | 9 - 900um Loose Tube | 10 - 1.0m | FA - FC/APC | ||||||||||
| S - Specify | 2 - 2.0mm Loose Tube | 15 - 1.5m | FU - FC/UPC | |||||||||||
| 3 - 3.0mm Loose Tube | 20 - 2.0m | SA - SC/APC | ||||||||||||
| SS - Specify | SU - SU/APC | |||||||||||||
| LA - LC/APC | ||||||||||||||
| LU - LC/UPC | ||||||||||||||
| SS - Specify | ||||||||||||||
