| High Power Double Clad 2000nm Polarization Insensitive Optical Isolator | |||||||||||||||
|
High Power Double Clad 2000nm Polarization Insensitive Optical Isolator is a fiber passive component built with double cladding singlemode fiber, it allows light signal to be delivered in one forward direction and avoid the back reflection light, it's widely used in amplifier system, fiber optic sensor system to protect the light source and lower down the optical signal noise. The optical power can be up to 10W CW upon request, if need pulse type please contact us to confirm. |
|||||||||||||||
|
Application: |
Features: |
|
|||||||||||||
|
Fiber Optic Amplifier Fiber Optic Sensor Fiber Amplifier Fiber Laser |
High Power High Isolation Low Insertion Loss High Reliability |
||||||||||||||
| Specification: | |||||||||||||||
| Parameter | Symbol | Value | Unit | ||||||||||||
| Center Wavelength | λ | 2000 | nm | ||||||||||||
| Bandwidth | BW | ±50 | nm | ||||||||||||
| Stage | Single Stage | Dual Stage | - | ||||||||||||
| Typ. Insertion Loss | IL | 1.0 | 1.2 | dB | |||||||||||
| Max. Insertion Loss | IL | 1.2 | 1.5 | dB | |||||||||||
| Typ. Peak Isolation | Iso | 30 | 42 | dB | |||||||||||
| Min. Isolation | Iso | 25 | 35 | dB | |||||||||||
| Max. Polarization Dependent Loss | PDL | 0.2 | dB | ||||||||||||
| Max. Polarization Mode Dispersion | PMD | 0.2 | ps | ||||||||||||
| Min. Return Loss | RL | 50 | dB | ||||||||||||
| Max. Optical Power (CW) | P | 1, 3, 5, 10 or specify | W | ||||||||||||
| Max. Peak Power | P | 5, 10 or specify | KW | ||||||||||||
| Max. Tensil Load | 5 | N | |||||||||||||
| Fiber Type | 10/130 0.15/0.46NA double cladding fiber | - | |||||||||||||
| Operating Temperature | T | -5~70 | ℃ | ||||||||||||
| Storage Temperature | T | -40~85 | ℃ | ||||||||||||
| Package Dimension | Φ5.5×L35 or L80xW12xH10 | mm | |||||||||||||
| Notice: Above specifications are tested at center wavelength without connector in room temperature @23℃. | |||||||||||||||
| For devices with connectors, IL will be 0.3dB higher, RL will be 5dB lower. connectors only 1W CW optical power guarantee. | |||||||||||||||

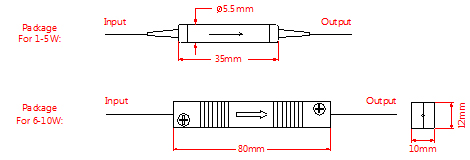

| Drawing: |
|
||||||||||||||
| Ordering Information (Part Number): | |||||||||||||||
| HPIISO-WWWW-S-HH-FFF-J-LL-CC | |||||||||||||||
| WWWW | S | HH | FFF | J | LL | CC | |||||||||
| Wavelength | Stage | Handling Power | Fiber Type | Fiber Jacket | Fiber Length | Connector | |||||||||
| 1940 - 1940nm | S - Single Stage | 01 - 1W | D10 - 10/130 Double | B - 250um Bare Fiber | 05 - 0.5m | NE - None | |||||||||
| 1950 - 1950nm | D - Dual Stage | 03 - 3W | Cladding Fiber | 9 - 900um Loose Tube | 10 - 1.0m | FA - FC/APC | |||||||||
| 2000 - 2000nm | 05 - 5W | SSS - Specify | 15 - 1.5m | FU - FC/UPC | |||||||||||
| 2050 - 2050nm | 10 - 10W | 20 - 2.0m | SA - SC/APC | ||||||||||||
| SS - Specify | SS - Specify | SU - SU/APC | |||||||||||||
| LA - LC/APC | |||||||||||||||
|
|
LU - LC/UPC | ||||||||||||||
| SS - Specify | |||||||||||||||
