SM Band Pass Filter

 /1064nm Band Pass Filter

1064nm Band Pass Filter
1064nm Band Pass Filter

1064nm Band Pass Filter

Wavelength: 1064nm

Pass Bandwidth: 2, 5, 6, 8, 9, 25nm

Stop Bandwidth: 6, 10, 12, 20, 22, 30, 38nm

Fiber Type: HI 1060 Fiber

Max. Optical Power: 300mW CW

Inquiry now Download pdf
1064nm Band Pass Filter
      1064nm Band Pass Filter is a fiber passive component which is based on thin-film filter technology, it can block the
unwanted wavelength signal and pass the specific wavelength band. It's widely used in fiber amplifier and fiber laser field,
the high power type is also available upon request.
Application:
 Features:
Fiber Amplifier
Fiber Laser
Fiber Optic Sensor
Lab And Research 		Low Insertion Loss
High Isolaton
High Power
High Realibility
Specification:
Parameter Symbol Value Unit
Center Wavelength λ 1064 nm
Min. Pass Bandwidth @0.5dB BW 2 2 5 8 8 nm
Max. Stop Bandwidth @25dB BW 6 10 10 20 30 nm
Max. Insertion Loss IL 0.9 dB
Min. Isolation Iso 25 dB
Max. Polarization Dependent Loss PDL 0.1 dB
Min. Return Loss RL 50 dB
Max. Optical Power (CW) P 300 mW
Max. Tensil Load   5 N
Fiber Type   HI 1060 fiber -
Operating Temperature T -5~70 ℃
Storage Temperature T -40~85 ℃
Package Dimension   Φ5.5xL35 mm
Notice: Above specifications are tested at center wavelength without connector in room temperature @23℃.
             For devices with connectors, IL will be 0.3dB higher, RL will be 5dB lower.

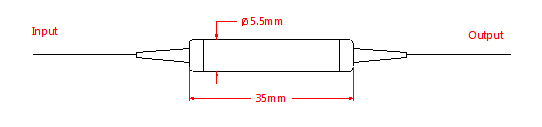

Drawing:
Ordering Information (Part Number):
 BPF-WWWW-PP-SS-J-LL-CC
 WWWW  PP  SS  J  LL  CC
 Wavelength  Pass Band  Stop Band  Fiber Jacket    Fiber Length  Connector
 1064 - 1064nm  02 - 2nm  06 - 6nm  B - 250um Bare Fiber     05 - 0.5m    NE - None
   05 - 5nm  10 - 10nm  9 - 900um Loose Tube    10 - 1.0m    FA - FC/APC
   06 - 6nm  12 - 12nm  2 - 2.0mm Loose Tube    15 - 1.5m    FU - FC/UPC
   08 - 8nm  20 - 20nm      20 - 2.0m    SA - SC/APC
   09 - 9nm  22 - 22nm        SS - Specify      SU - SU/APC
   25 - 25nm    30 - 30nm            LA - LC/APC
   SS - Specify    38 - 38nm            LU - LC/UPC
     SS - Specify               SS - Specify
